If you are unable to receive a video signal in your Studio software please make sure you confirm the following:
Are you using a Blackmagic or Magewell capture device?
Livestream Studio will best work with video signals from certified Blackmagic Design capture devices. Magewell cards are also supported. If you are using a non-Blackmagic device there is a chance your signal will not appear in the software.
Check here for our list of supported devices.
Do you have the recommended version of the Blackmagic Design drivers?
We generally recommend using the most recent version of Desktop Video. However, if you are on Windows 10 Pro version 1809, we recommend downloading Desktop Video 10.11.0.
Drivers found on the Blackmagic Design package discs are often out of date as Blackmagic frequently releases updates. Please be sure you are using the proper version of the Blackmagic drivers, which you can download at blackmagicdesign.com/support.
- Select Capture & Playback and download Desktop Video for your operating system.
Are you getting a video signal in Blackmagic Media Express?

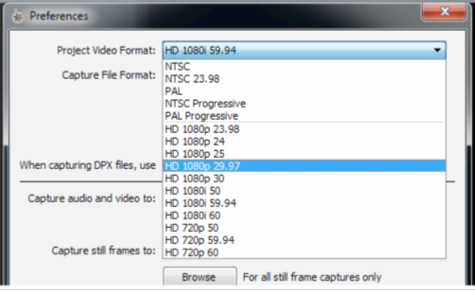

Click the Start button and search for Media Express, then click Blackmagic Media Express to open the program. Select the Log and Capture tab to display the video input. Click Edit on the menu bar at the top of the program and select Preferences, then confirm that your Project Video Format matches the format of your video source.
If you receive a video signal in Media Express, you should check Studio's video format settings. If you do not receive a video signal in Media Express, confirm you are connected to the correct input and your camera is configured properly (e.g. SDI or HDMI correctly selected).
Does Livestream Studio's video format match your input source?
Open Studio's Preferences by clicking the gearwheel icon at the top right-hand side of the program window. In the Project Format tab at the left-hand side of the Preferences window, and choose the video format that matches your input source's format. Please note that all your input sources should match Studio's video format setting.

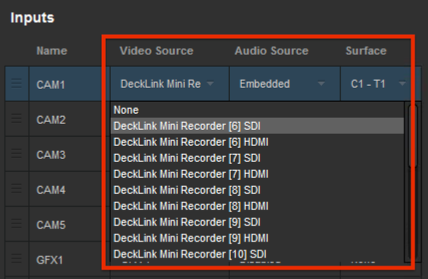

Are you connected to the correct input of your Blackmagic device?
Generally, Blackmagic Design doesn't specifically mark the input/outputs of the device on the actual hardware. Please check your capture device's documentation to confirm the proper input.
Is your camera configured properly?
Many cameras with multiple output formats allow you to define your specific output method. Check your camera's settings to confirm your are properly configured for HD-SDI, HDMI or analog, depending on your input to the Blackmagic Design device.
Does your camera output to an external display?
Connect the camera's output to an external display such as a monitor to verify the video signal. If you do not receive a signal, try a new wire of the same type or double-check your camera's settings.
If all of the above fail please contact Livestream Support by going to Livestream Studio settings and navigating to the Support tab. You will find contact information and your Support PIN there.
